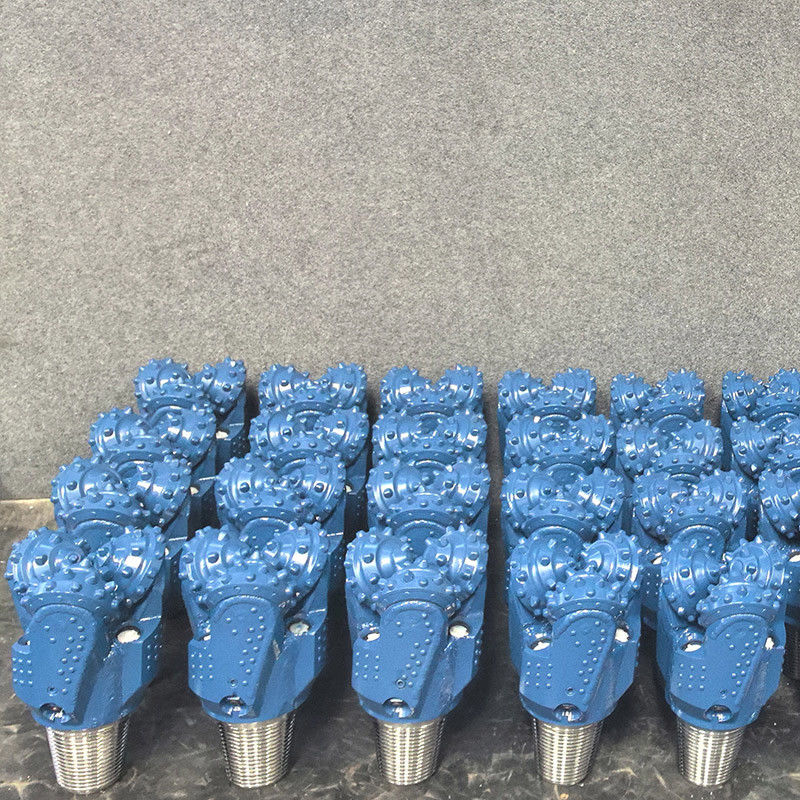

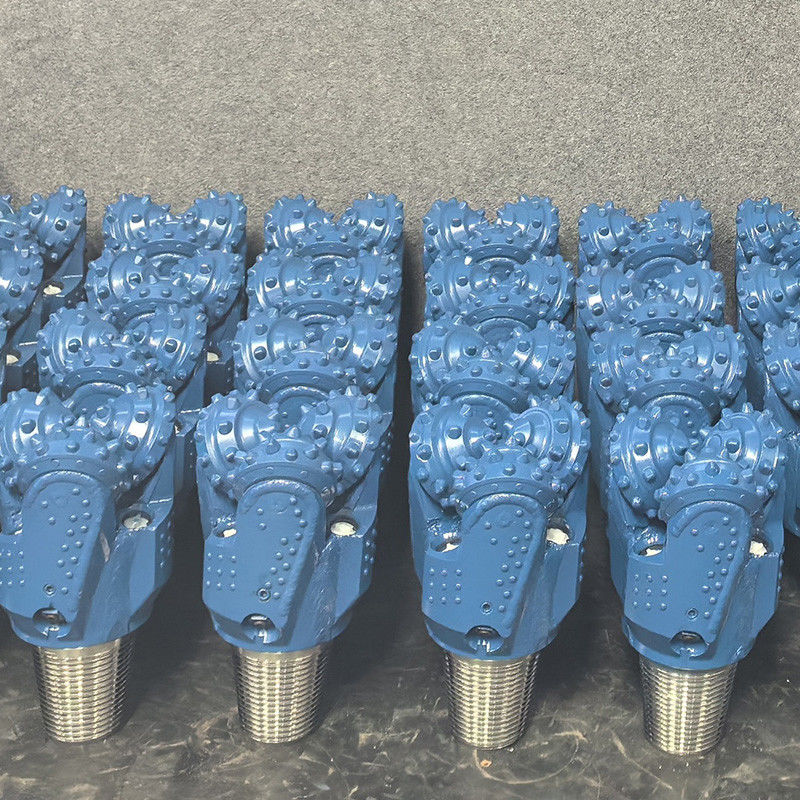

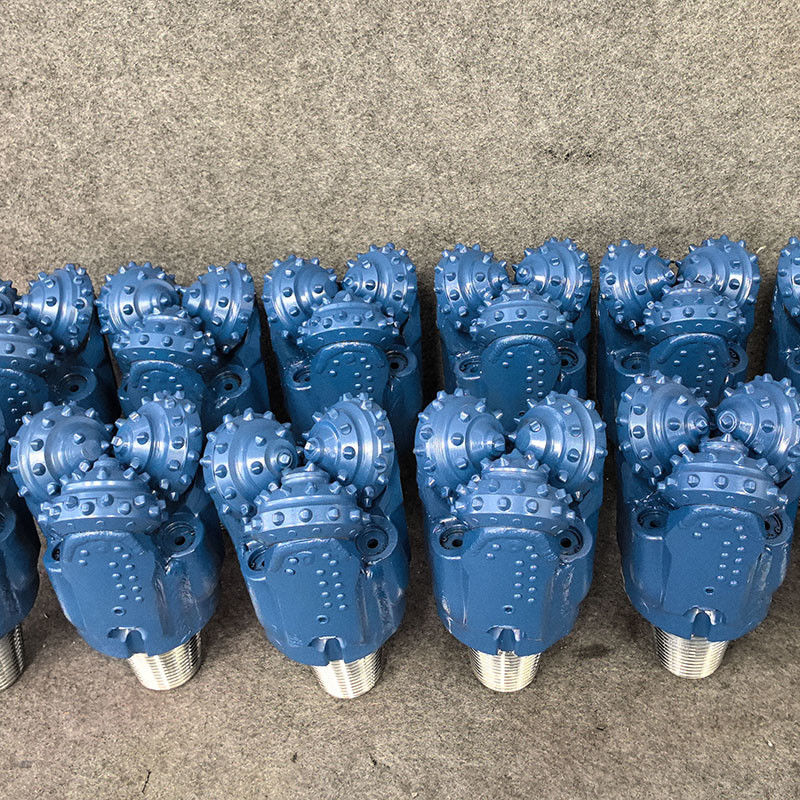

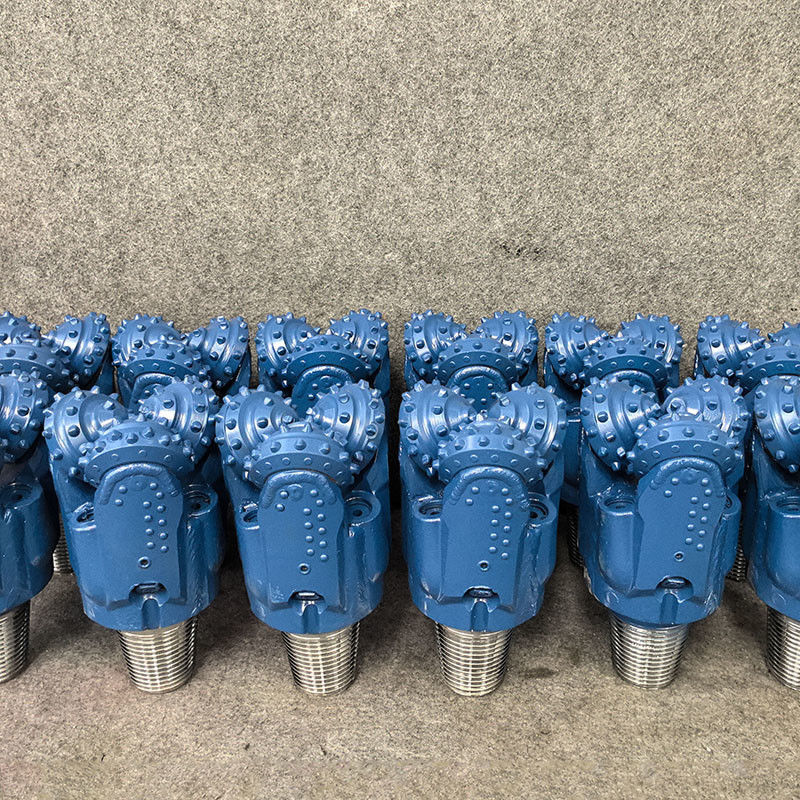

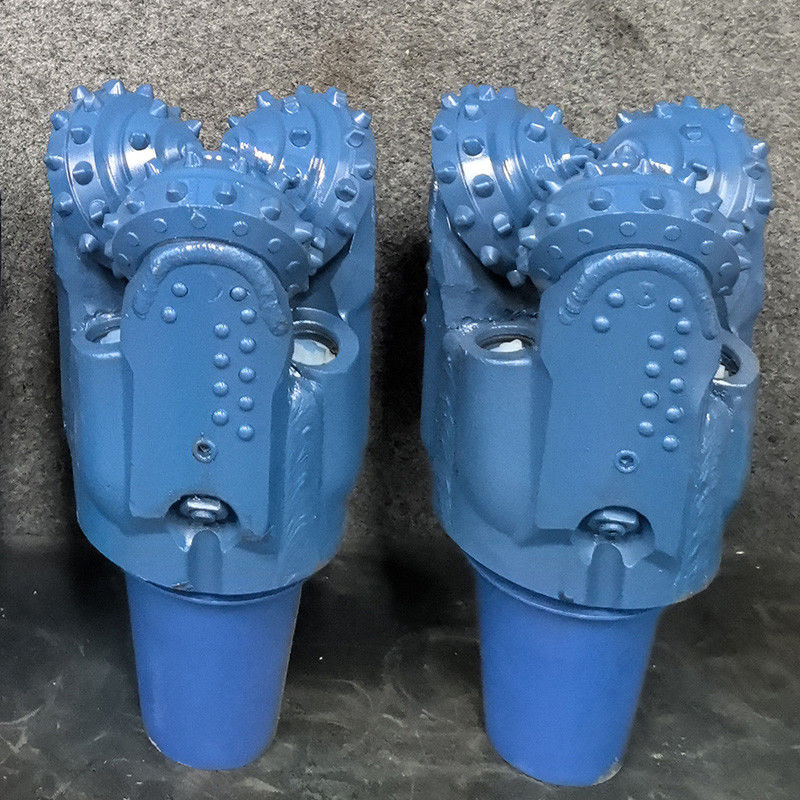

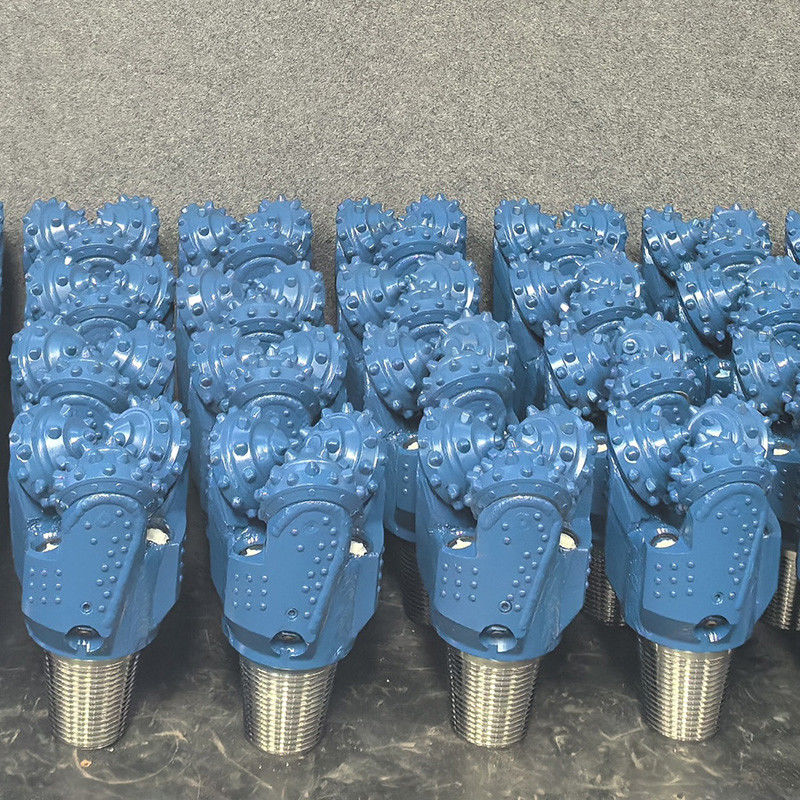

Oil And Gas Extraction Tricone Roller Bits With 2 3/8 Reg To 7 5/8 Reg Thread Type

Product Description:

1. Quaternary Alluvial Layer:
The Quaternary alluvial layer comprises humus soil in the upper part, with a thickness ranging from 1.0 to 4.0 meters. The lower part consists of an alluvial gravel layer, 45-120 meters thick, characterized by a yellow-brown, dense composition with a small amount of cohesive soil. The gravel particles are 2-25cm in size, predominantly composed of quartzite, exhibiting good roundness with a gravel content exceeding 70%.

2. Bedrock Characteristics:
The bedrock in the area is predominantly limestone, exhibiting a drillability level of 5-6. It features a medium-thick layered structure with a dip angle ranging from 35 to 40 degrees. The basic quality level of the rock is Grade IV. Karst phenomenon is moderately developed, with severe dissolution observed in karst caves. These caves are predominantly filled with clay deposits within the rock mass.

Features:

Drilling into gravel and limestone formations uses low toothed and large toothed roller bits. In today's fiercely competitive market economy, the project cost is relatively low. Due to the high price of newly produced roller bits, our company has specifically collected roller bits with higher hardness that have been retired from the Panjin Petroleum Drilling Team in order to reduce drilling costs.

In particular, the expansion drill bit is a drill bit body that we self process with round steel. The Φ 216mm roller bit is divided into three separate wheel arms, with a total of six welded in the middle of the bit body in a stepped shape. Its outer diameter is controlled at 550mm, and the cutting and welding of Φ 216mm are carried out. When the roller arm is used, it should be placed in a cooling tank to cool down, in order to prevent the lubricating oil in the roller arm from burning and overflowing due to high temperatures during cutting and welding, improve its service life, and greatly reduce the cost of water well drill bits.

Before going into the well, check the wear and tear of the roller bit, whether it rotates flexibly and the welding quality, and do a good job in daily maintenance of the roller bit.

Technical Parameters:

Applications:

RuiTong Bit's TCI tricone drill bit is a versatile and high-quality product suitable for a variety of applications and scenarios. With its exceptional performance and durability, this tricone drill bit is ideal for the following product application occasions:

- Rotating Core Bits: The TCI tricone drill bit from RuiTong Bit is designed to excel in rotating core drilling operations. Its reliable performance and efficient drilling capabilities make it a top choice for extracting core samples in geological exploration and mining activities.

- Tricone Roller Bits: This tricone drill bit is perfect for use in tricone roller bit assemblies. Its sturdy construction and advanced design ensure smooth and effective drilling in various rock formations, making it a reliable tool for oil and gas drilling projects.

Packing and Shipping:

Product Packaging:

The Tricone Drill Bits are carefully packaged in a sturdy box to ensure their safety during transportation. Each drill bit is securely held in place to prevent any damages that may occur during shipping.

Shipping:

Once your order is confirmed, the Tricone Drill Bits will be carefully packed and shipped to your designated address. We work with trusted shipping partners to ensure that your order arrives in a timely manner and in perfect condition.

FAQ:

Q: What is the brand name of this tricone drill bit?
A: The brand name is RuiTong Bit.

Q: What is the model number of this tricone drill bit?
A: The model number is TCI tricone drill bit.

Q: Where is this tricone drill bit manufactured?
A: It is manufactured in Hebei, China.

Q: What certifications does this tricone drill bit have?
A: It is certified by API/ISO9001.

Q: What is the minimum order quantity for this tricone drill bit?
A: The minimum order quantity is 1 piece.
